Employer
Nevvar-Salih Işgören Foundation
Main Contractor
Duygu Contracting and Construction Inc.
Contract Date
26.07.2017
Project Completion Date
27.09.2019
Final Bill of Quantities (F.B.Q.)
45,000,000 TL
Scope of Contract
Ground + Reinforced Concrete Mosque Construction
Project Description

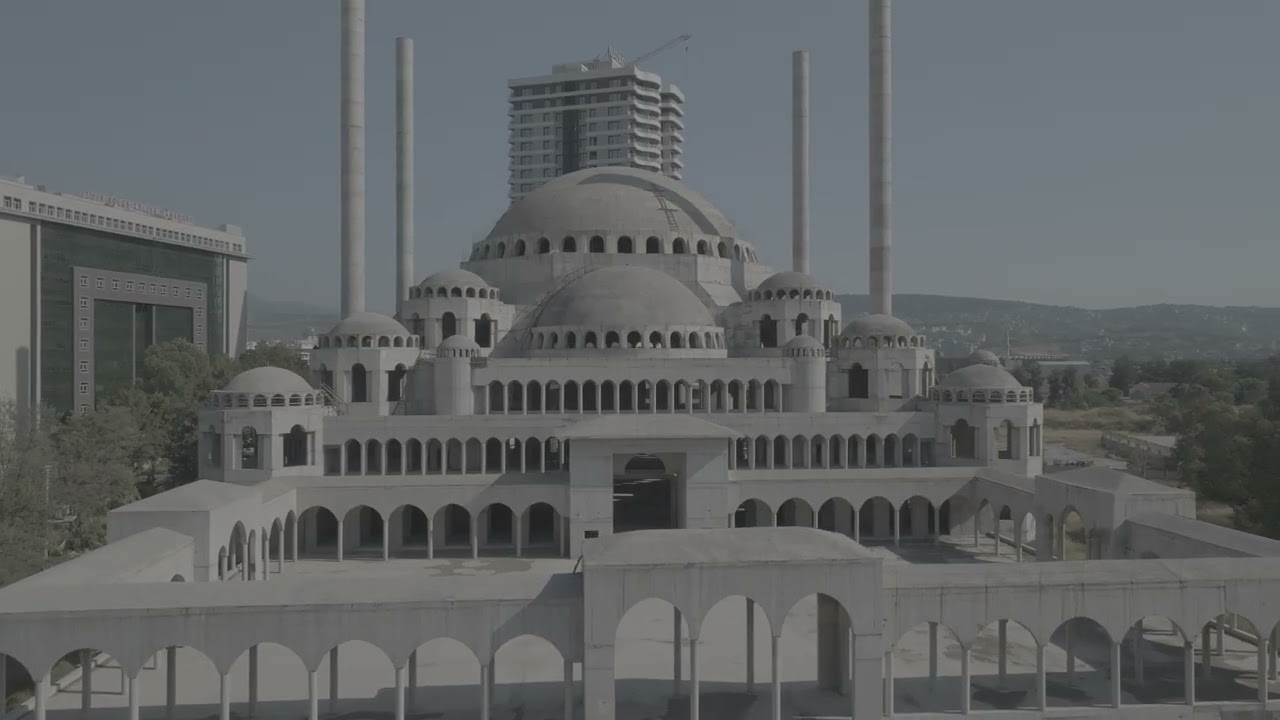

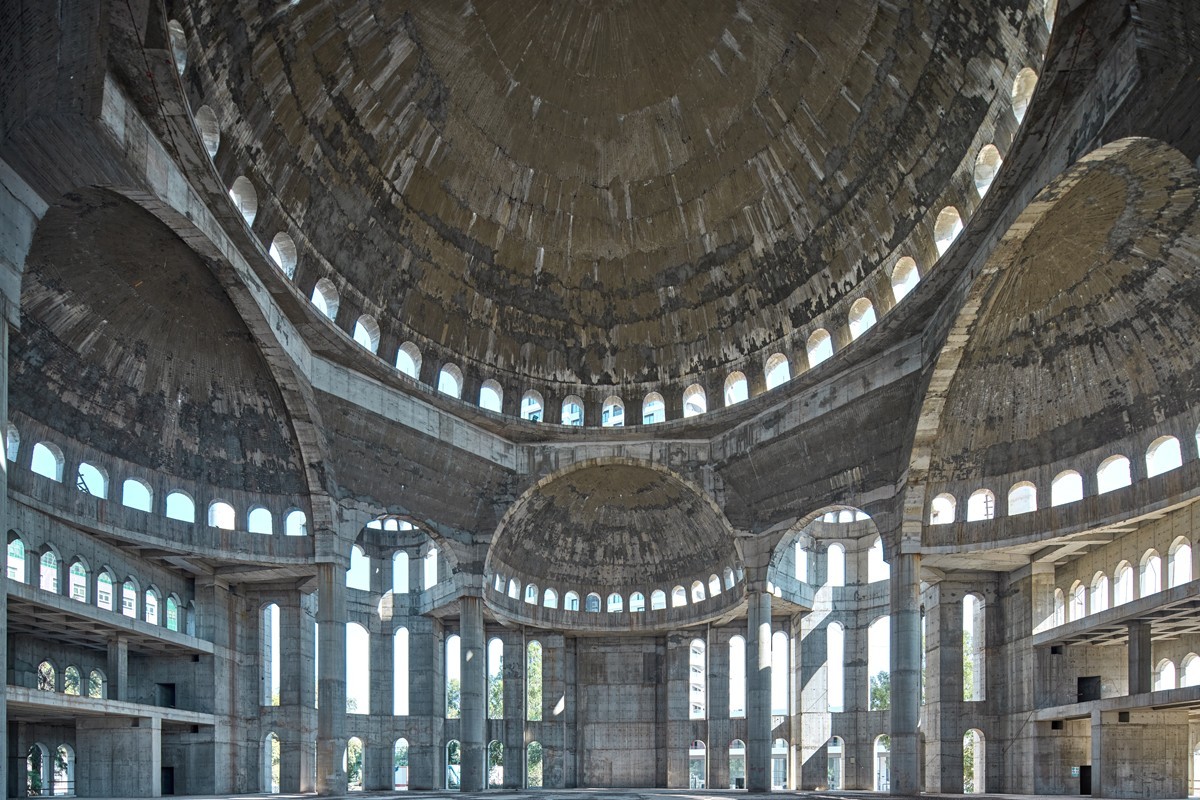

The project foundation includes 1,245 micropiles with 80 cm diameter, 30-35 meters in length. Additionally, 680 jet grout columns with 80 cm diameter were constructed at 18-20 meters depth. A total of 100,000 m³ of excavation was carried out. The dome span is designed as 41 meters with an upper elevation of 50.60 meters. The structure has 4 minarets, 2 of which were built with şerefe (balcony). The construction area is 16,908 m². The project used 60,000 m³ of concrete and 6,200 tons of deformed reinforcing steel.
